Smarter Reporting, Built Into Your Radiography Workflow
Pair your H-RAD system with an AI layer that works the moment an image is acquired.
BPL Cortex RADS-AI is an AI-powered software platform that integrates with BPL's Digital Radiography systems — including the H-RAD 32/40*/50** — to automatically triage chest X-rays as normal or abnormal, highlight key findings directly on the image, and generate a structured draft report for radiologist review. Because AI models run locally on-device, analysis happens in real time without internet dependency, keeping reporting fast and patient data inside your own infrastructure.
Built to Keep Whole-Body
Imaging Moving.
-

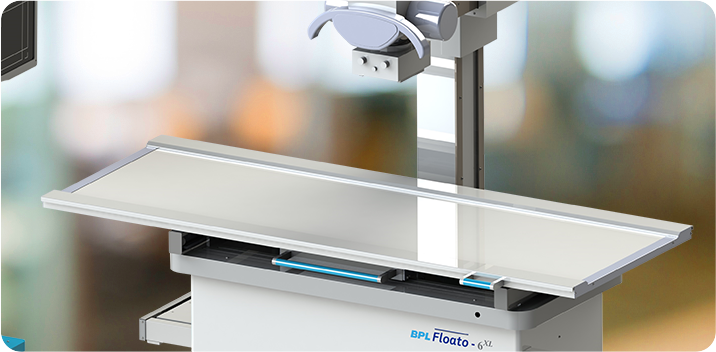

Two Detectors, One Continuous Workflow
Because the table and wall bucky stand each have their own fixed 17"x17" CsI detector, technologists can move a patient from a recumbent table study to an upright chest or extremity view without physically relocating a detector panel — reducing setup time between exposures.
-

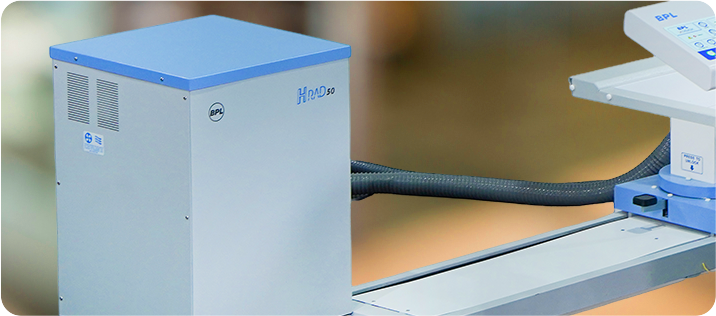

Power Sized to Your Department
The 32, 40*, and 50** kW variants let a facility choose generator output based on actual case volume — from routine diagnostic-centre workloads up to higher-throughput hospital radiology departments — without changing the underlying system architecture.
-

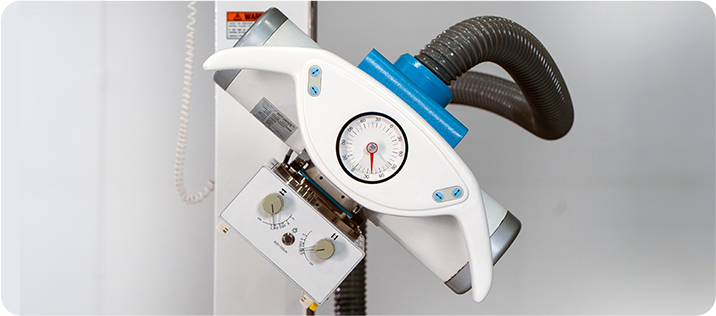

Simplified Site Planning
The ceiling-free, floor-mounted stand design reduces dependency on structural ceiling-mount infrastructure, which can simplify installation timelines and site preparation, particularly in retrofit environments.
-

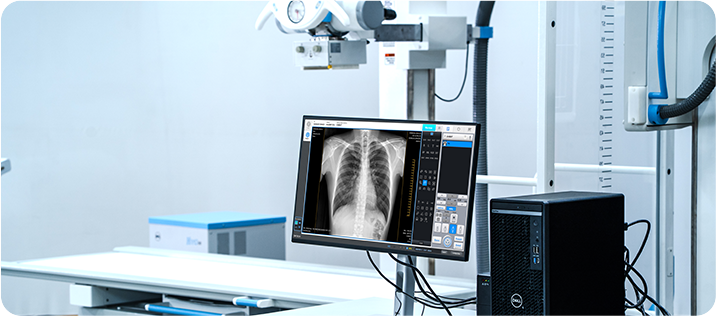

Broad Clinical Coverage
A single system configuration supports skull, chest, spine, abdomen, and extremity imaging, making it suited to general-purpose radiology departments rather than a single specialised use case.
-

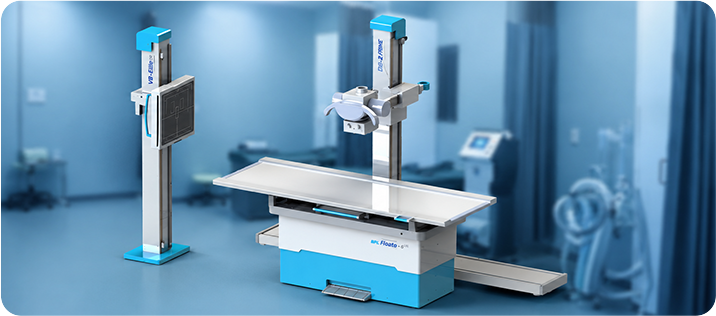

Built on a Proven Platform
The H-RAD 32/40/50 generator and rotating-anode tube architecture is shared across BPL's DR-1 and DR-2 Prime series, reflecting an established design platform rather than a first-generation system.

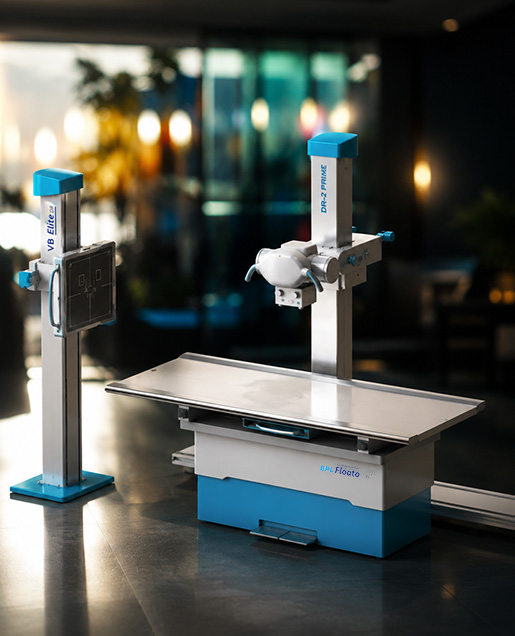

Built for Specific Clinical UseDesigned for departments handling consistent, high-volume general radiography.
Diagnostic Centres
Dual-detector setup supports faster patient turnover by removing detector-swap downtime between table and wall studies.
Government & Multi-Speciality Hospitals
Scales across 32/40/50 kW variants to match departmental patient load and procedure mix.
Corporate Hospitals
Floor-mounted, ceiling-free design simplifies installation in both new-build and retrofit radiology suites.
Orthopaedic & Trauma Units
Wall bucky and table detector combination supports extremity, spine, and skeletal imaging without repositioning a single detector.
Emergency & General Radiology
High-frequency generator output supports rapid acquisition across a broad range of body habitus and exposure needs.
Technical SpecificationsEssential details for procurement teams, biomedical engineers, and dealers.
-
SpecificationDetails
-
SeriesDR-2 Prime
-
Power Rating32 kW / 40 kW* / 50 kW**
-
mA Rating400 mA / 500 mA* / 650 mA**
-
X-Ray TubeRotating anode tube, high-frequency generator
-
Detector ConfigurationDual 17"x17" CsI Flat Panel Detectors (table + wall bucky)
-
Stand TypeFloor-mounted, ceiling-free
-
Table TypeFloating-top radiography table
-
Wall UnitWall bucky DR stand
-
RegulatoryAERB compliant; ISO 13485:2016 & ISO 9001:2015 certified manufacturing
-
Recommended SettingsDiagnostic centres, government & multi-speciality hospitals, corporate hospitals, medical institutions
Full technical specification sheet available on request.
See the Product in Use
Compare Similar ProductsNot sure if this is the right configuration? Compare it with other systems in BPL's range.
-
H-RAD 32 / 40 / 50 DR-2 Prime Reliable Fixed Digital Radiography
- Whole-Body Digital Imaging:
- 17" x 17" High-Resolution Detector:
Current Model -
H-RAD 40 / 50 DR-1 Prime Sharp. Clear. Accurate.
- Whole-Body Digital Imaging:
- 17" x 17" Flat Panel Detector:
-
HRAD 32 / 32i DR-1 Prime Fast & Easy Operation
- Whole-Body Digital Imaging:
- 17" x 17" Flat Panel Detector:
Product Support You Can Depend On
Get product assistance, demo support, installation guidance, and service information directly from BPL Medical Technologies.
FAQs About H-RAD 32 / 40 / 50 DR-2 Prime
It is a floor-mounted fixed digital radiography system used for whole-body general radiography, including skull, chest, spine, abdomen, and extremity imaging, in diagnostic centres and hospital radiology departments.
The variants share the same platform and differ only in generator output — 32 kW, 40 kW, and 50 kW — so a facility can match the system to its case volume without changing the detector configuration or stand design.
DR-2 Prime uses a dual-detector configuration — a fixed detector in both the table and the wall bucky — so technologists never have to move a single detector panel between studies. DR-1 Prime uses one detector shared across both positions.
No. The stand is floor-mounted and ceiling-free, which reduces dependency on structural ceiling-mount infrastructure and can simplify installation, particularly in retrofit environments.
Dual 17"x17" CsI flat panel detectors — one integrated into the table and one in the wall bucky stand.
Yes. The dual-detector workflow and 32/40/50 kW generator options are specifically designed to support consistent, high-volume general radiography in hospital and multi-speciality settings.
Yes. The system is AERB compliant and manufactured under ISO 13485:2016 and ISO 9001:2015 certification.
Use the "Request Demo" or "Request a Commercial Quotation" buttons on this page, or contact your nearest BPL office via the toll-free number 1800-425-2355.
Yes. BPL's Digital Radiography systems, including the H-RAD 32/40/50*, can integrate with AI-powered reporting software to assist with image triage and structured draft reporting.
See the "Compare Similar BPL Systems" section on this page for a side-by-side look at the H-RAD 32/32i, H-RAD 40/50, and M-RAD 5.0 DR.
